China multi-layer shaking table multy 4 deck shaker table GoldWen
Origin：Henan, China
Layers / decks：Multi-layers 2, 3,4 layers
Customize：Can be customized
Capacity：0.1-10 Ton/h
Feed size：0.0074-2mm
Used for： widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc.
China multi-layer shaking table multy 4 deck shaker table GoldWen

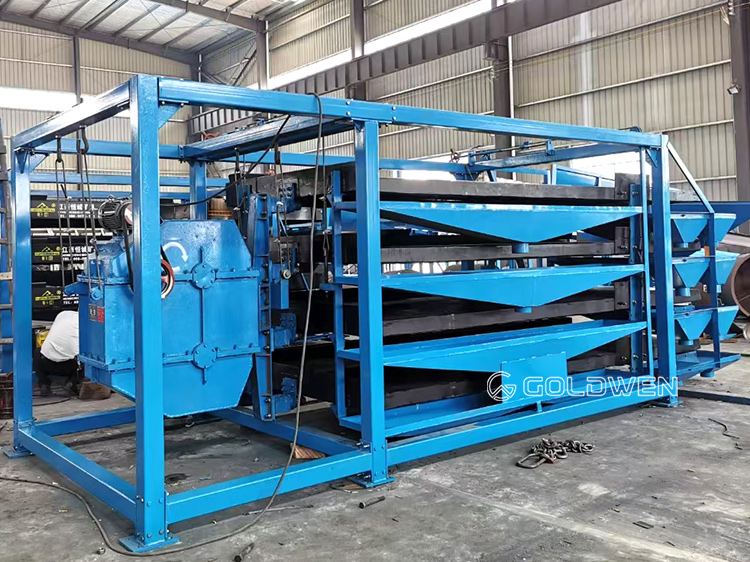

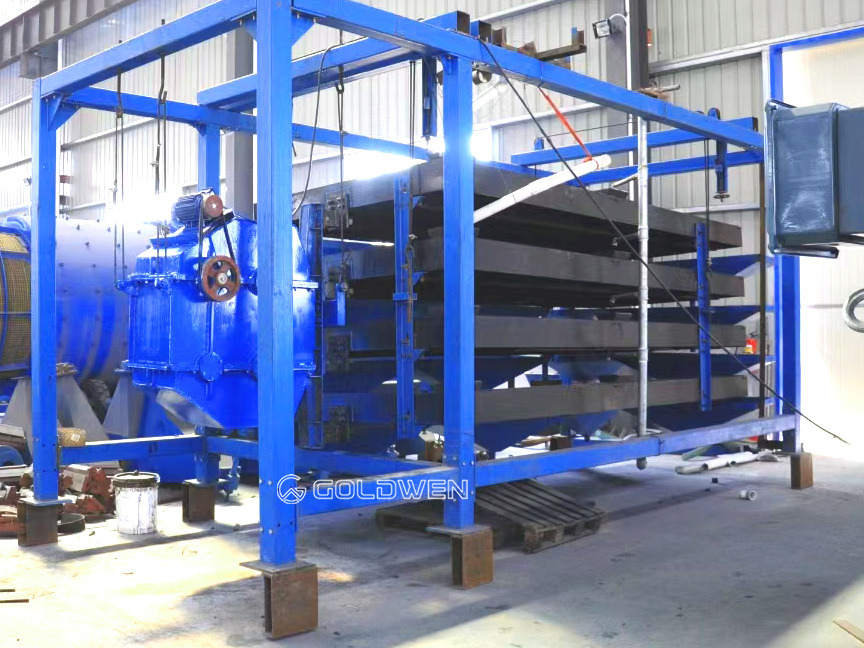

what is a multi-layer shaking table

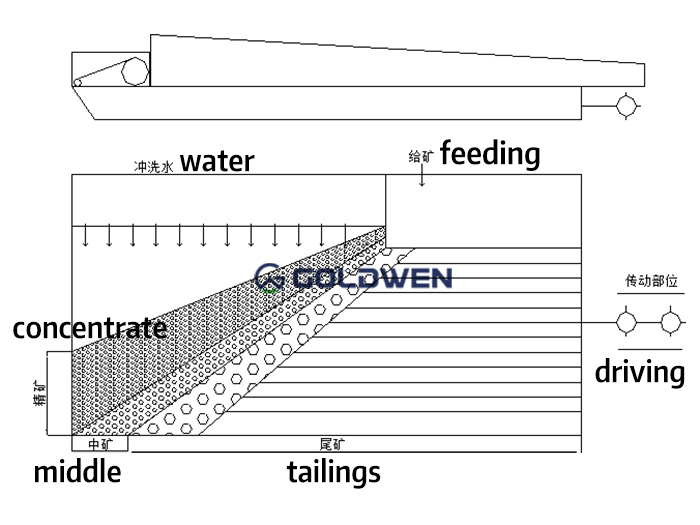

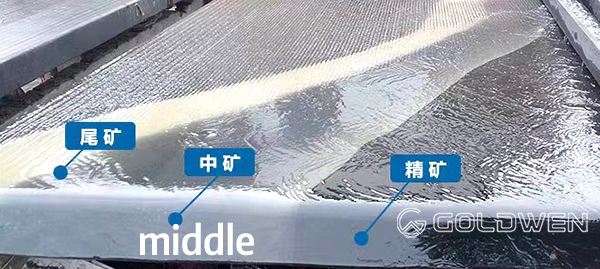

Multi-layer shaking table working principle same with 6s shaking table, 2 - 4 layers deck form an unit, The ore particles become loose and stratified within the bed strip due to water washing and bed surface vibration. The raw ore can be separated once to obtain the final concentrate, final tailings, and intermediate products.
Where a multi-layer shaking table can be used?
It is widely used in the gravity separation of tungsten, tin, tantalum and niobium, gold, and other rare and precious metal ores.
what is the advantage of a multi-layer shaking table

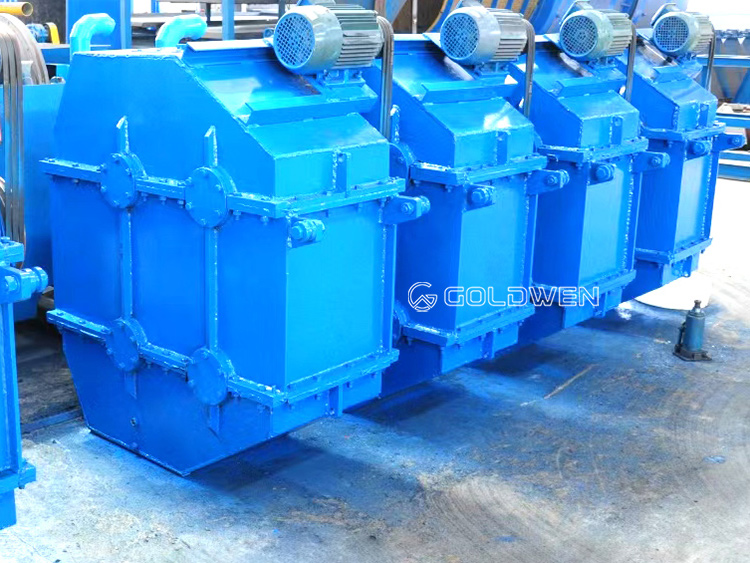

1. The inertial bed head structure is ingenious, with vertical force components balancing each other out;
2. Low energy consumption, with one suspended shaker requiring only the energy consumption of one ordinary shaker;
3. Suspended structure, low frictional power consumption, energy saving and shock absorption, simple foundation;
4. The fiberglass bed surface is wear-resistant, waterproof, resistant to drying and cracking, corrosion-resistant, with minimal deformation and less maintenance, and has a long service life;
5. The bed surface is installed in layers on a unified bed frame, making it easy to assemble and disassemble, and flexible in installation, thus increasing the processing capacity per unit of floor space;
6. Integrating the feeding cylinder, water supply pipe, and precision tail slot into one, it achieves a better on-site layout, making it more aesthetically pleasing and easier to manage after installation.
Parameter of the multi-layer shaker table
|
Item |
Spec |
unit |
|
Model |
4LYG |
mm |
|
Deck size |
4500x1830x1530 |
m |
|
Bed dressing area |
7.6x4 |
mm |
|
Feeding size |
≤2 |
|
|
Capacity |
2-5 |
tph |
|
Bed material |
fiberglass |
|
|
Feeding concentration |
10-30 |
% |
|
Stroke |
8,10,12、15,1820,22 |
mm |
|
Frequency |
270-360(adjustable) |
time per min |
|
Motor |
1.5 |
kw |
|
Dimension |
6330x2450x2660 |
mm |
|
Weight |
3600 |
kg |
