Gold upgrade shaker table, 6s shaking table factory - China staurk

Condition:New

Origin:Henan, China

Power:1.1 kw

Capacity:0.1 - 1.5 tph per set

Feeding size:0 - 2 mm


Used for: widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc.

Shaker table test video

Shaker table structure

China gold shaker table rawing structure

Apliaction of shaker table

6S Gold Shaking Table is one of the main equipments of gravity concentration applied on separating Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum,  Niobium , other rare metals & the noble metal ore.

Bed surface of shaker table

1) Bed material :
Fiberglass material is the most commonly used material
FRP bed surface has high rigidity and strength, resists chemical corrosion, acid and alkali, does not avoid chemicals in ore pulp, wear-resistant and corrosion-resistant, stable in shape, and does not dry and crack.
They are also Iron, wood, plastic, rubber, lacquer ash material
2) Bed Model
For number  slots or grooves, has
Model 46 , 50 , 60 , 88 , 110 , 120 , 135 , 138 , 150 etc.
gold shaker table  bed models types
3) Good sorting performance, stable index and excellent sorting
Concentrates, tailings, and middle mining can be obtained from the raw ore through only one separation process
4) left and right bed :

Base of shaking table

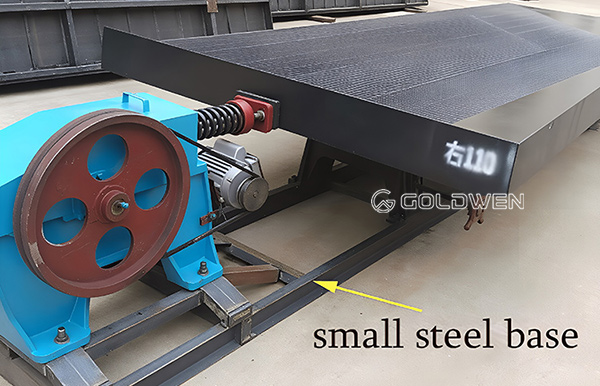

small steel base shaking table shaker table
Small steel base shaking table

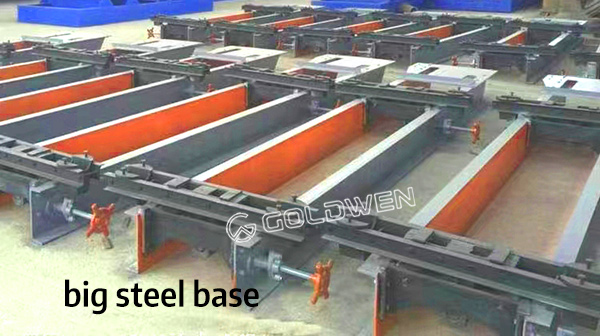

big steel base shaking table shaker table
Big steel base shaking table
And big steel base shaking table is a little more expensive than small steel base shaking table, but a bit more Stable than small one.
gold shaking table for sale
China gold shaking shaker table factory tin zinc concentrate
gold shaking table for sale
China gold shaking shaker table factory tin zinc concentrate
gold shaking table for sale
China gold shaking shaker table factory tin zinc concentrate

Parameter of the Gold shaker table

parameter of shaking table

Input size for different mineral

Coarse sand bed for a material size  between 0.5-2.0mm;
Fine sand bed for  a material size between 0.074-0.5mm;
Sludge bed for a material size between 0.037-0.074mm.

Other types shaking table

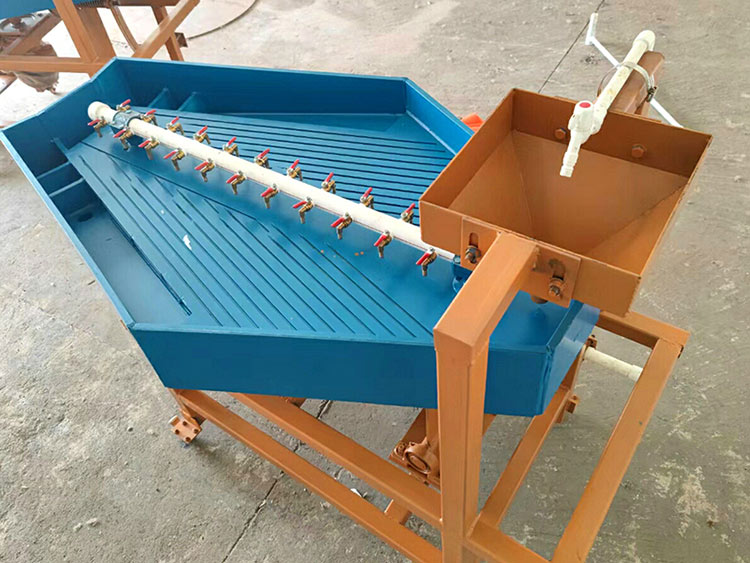

Gold Gemeni table gemini table made in China factory price shaker table
gemini shaking table
gemini shaking table for upgrade gold , has three types : GT69,GT250 and gt10000 with different capacity.
plastic shaking table

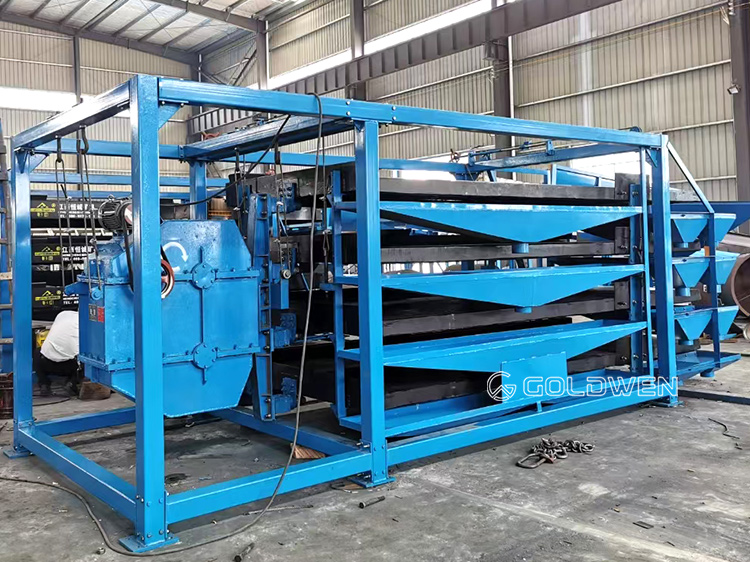

China bed 2 three level layer shaker shaking table factory
2 / 3 / 4 level shaking table

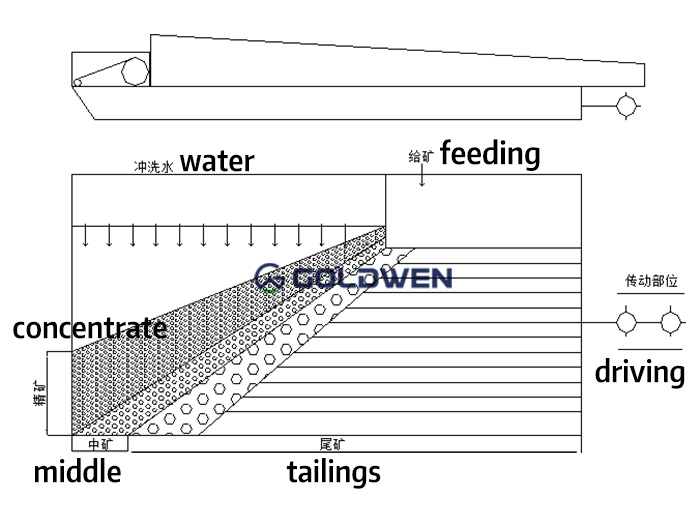

Working principle of gold shaking table

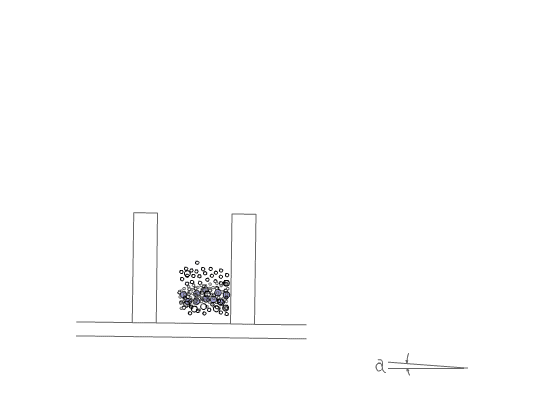

working principle of shaking table

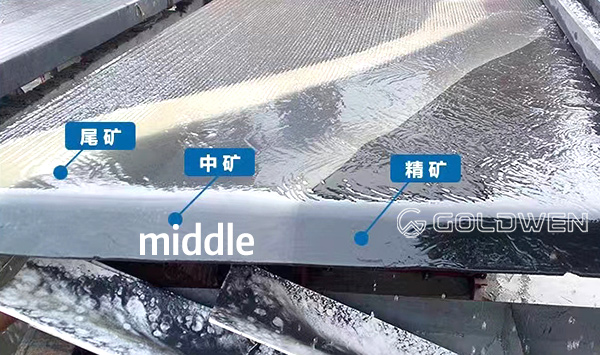

6S Shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
The Gold Shaking Table effective recycling granularity scope is 2-0.0074 mm.
Shaking table could continuously sort concentrate ore, second-grade ore and tailings. It is applied in roughing, cleaning and scavenging for dressing coarse sand(2-0.5mm), fine sand(0.5-0.074mm), pulp(-0.074mm).

Features of gold shaking table

High recovery ratio
High concentration ratio
Easy installation
Simple operation
Deck constructed of fiber glass
Three different decks to choose
Long working life
Adjustable stroke length and speed
